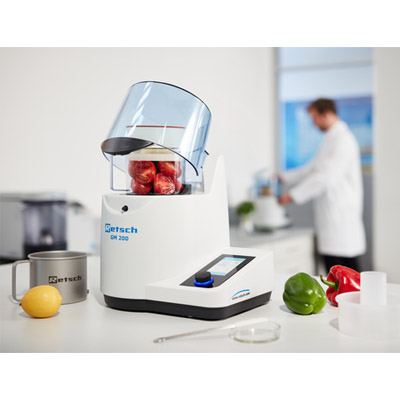

GM 200 GRINDOMIX INTRODUCTION
THE STANDARD IN THE FOOD INDUSTRY
- Thorough size reduction and homogenization of the entire sample material in seconds
- Pre- and fine grinding in one mill
- Variable speed up to 10,000 min-1 including Boost function with 14,000 min-1 for improved homogenization of tough and sticky samples
- Suitable for sample volumes up to 700 ml
- Cryokit for cold grinding with dry ice available
- 8 SOPs and 4 program cycles can be stored
- Optional gravity lids or volume reduction lids for automatic reduction of the grinding chamber volume
- All parts in contact with the sample material are autoclavable

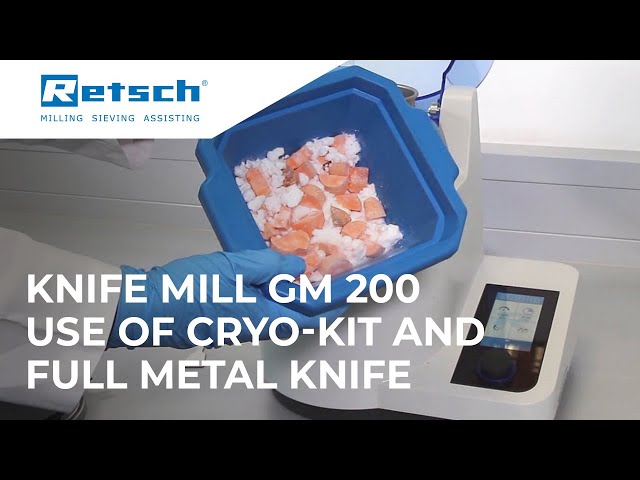

CRYOGENIC GRINDING WITH DRY ICE
To process tough or elastic materials which cannot be homogenized at room temperature, a Cryokit is available to ensure safe and efficient grinding with dry ice. It consists of three components:
Cryo lid
The lower part is made of stainless steel, the side openings allow for evaporation of CO2 during cryogenic grinding; the upper part is the standard PP lid.
Stainless steel container with baffles
The baffles contribute to a thorough mixing of the sample.
Full metal knife
This knife has 2 blades and is a must for cryogenic grinding. It is also well-suited for cutting hard samples.

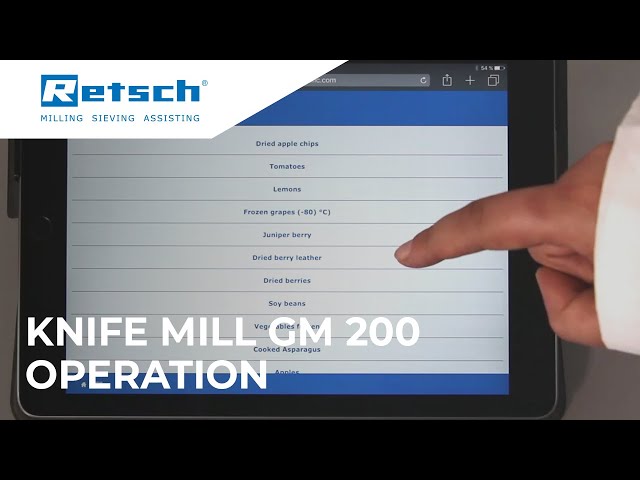

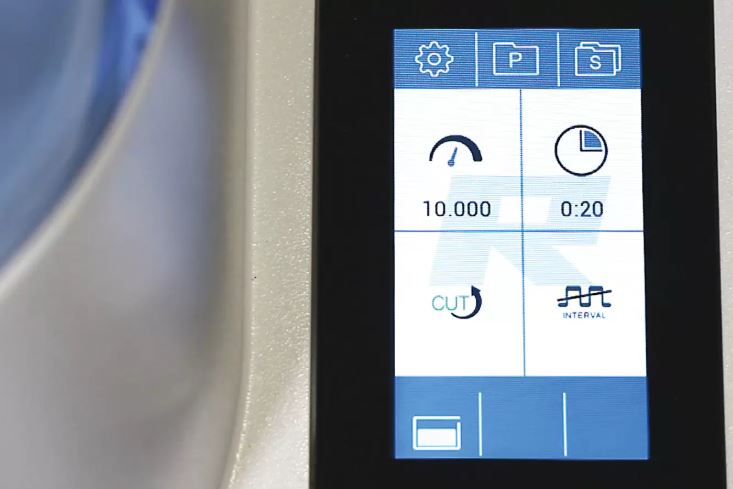

EASY AND SAFE OPERATION
Access to MyRETSCH web portal

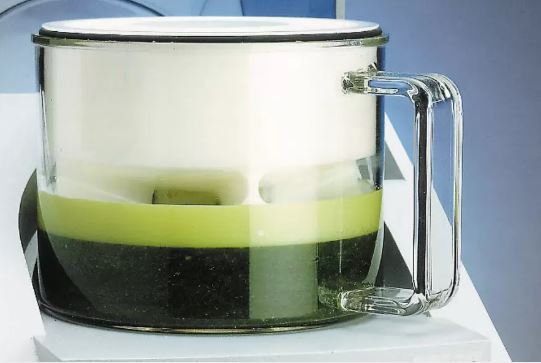

GRAVITY LID ENABLES VARIABLE VOLUME OF THE GRINDING CHAMBER

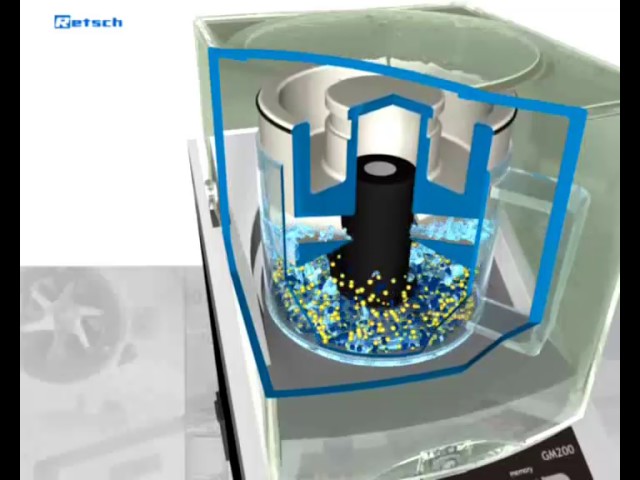

RETSCH has developed a gravity lid for the GRINDOMIX knife mills which reduces the volume of the grinding container, preventing the sample from escaping the homogenization process by clinging to the container walls. The lid drops under its own weight during grinding and always rests directly on the sample. The result is thorough homogenization of the complete sample material. The gravity lid is also available with overflow channels. It ensures that the cell liquid released by the sample during grinding is returned through these channels to the center of the container, allowing for perfect homogenization.

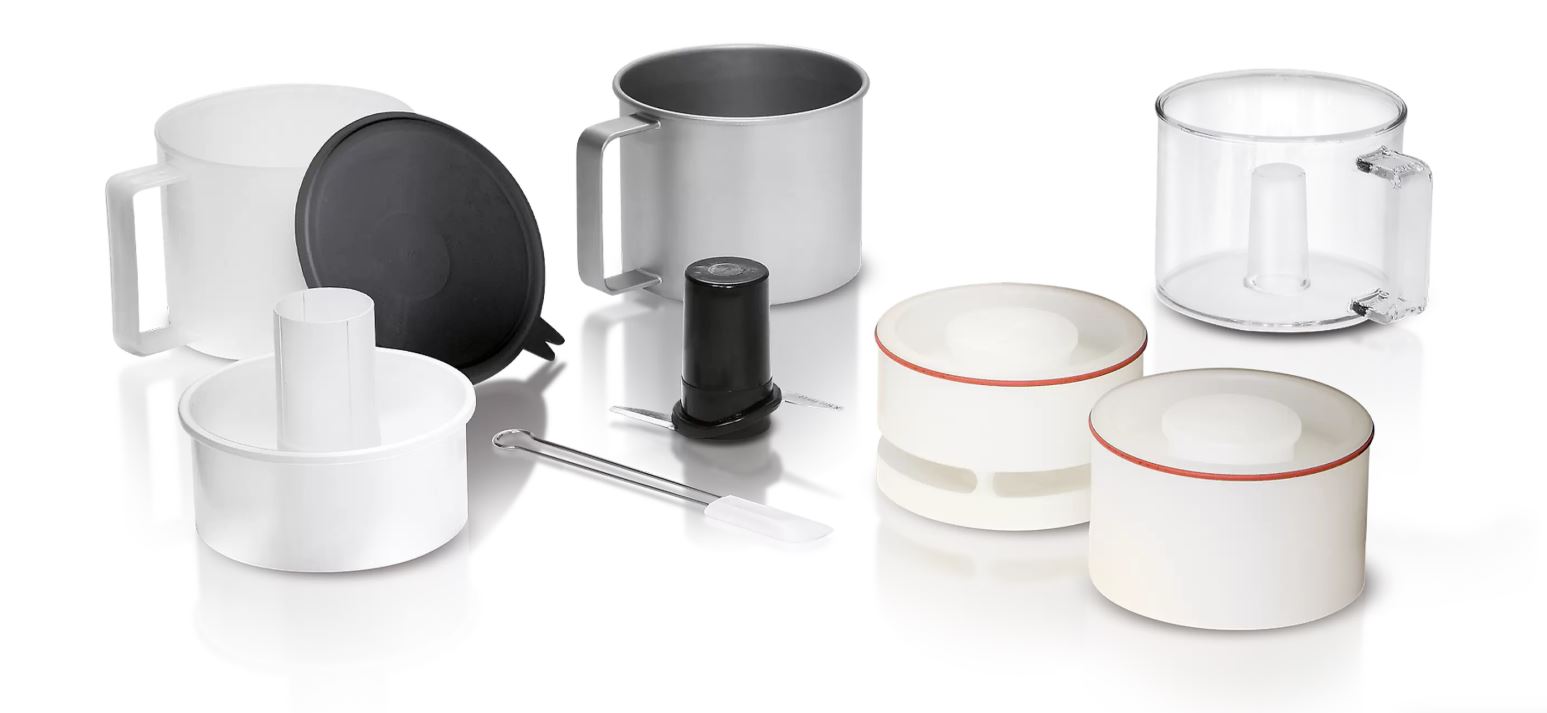

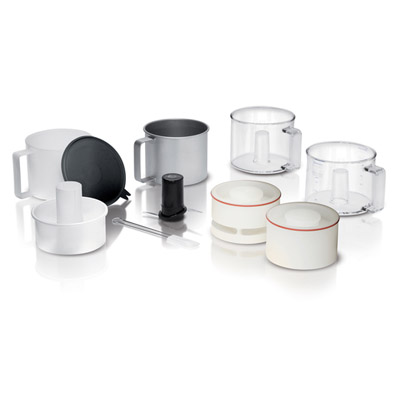

ACCESSORIES AND OPTIONS
A range of different containers, lids and knives makes the GRINDOMIX GM 200 a truly universal device, suitable not only for processing food and feed samples but a wide range of materials.
- Patented gravity lid
Automatically adjusts the grinding chamber volume to the changing sample volume.
- Gravity lid with overflow channels
Ideally suited to homogenize samples with a high water content.
- Stainless steel container
Minimum wear when hard sample materials are processed.
- Stainless steel container with baffles
The baffles contribute to a thorough mixing of the sample.
- Reduction lid
Reduces the chamber volume to 0.5 or 0.3 liter for optimum homogenization of small sample volumes.
- Serrated blade knife
Used for particularly tough samples such as fatty, streaky meat.
- Full metal knife
With 2 blades, it is suitable for cold grinding and cutting hard samples.
- Cryokit
For homogenizing sticky samples with dry ice
TYPICAL SAMPLE MATERIALS
RETSCH knife mills are suitable for a vast range of applications. Typical materials include candy, cereals, cheese, coated tablets, cocoa nibs, dietary supplements, dried and fresh fruit, feed pellets, fish, frozen products, ham, lettuce, meat, nuts, oil seeds, pharmaceutical products, plant materials, sausages, soap, spices, vegetables, etc.
FUNCTIONAL PRINCIPAL
Two sharp, robust blades rotate in the center of the grinding container. Depending on the rotational direction, size reduction is effected with the blunt side (preliminary size reduction) or the sharp side (fine grinding).
The knife is directly driven by a powerful motor of 1000 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
TECHNICAL DATA
| Applications | size reduction, homogenization and mixing |
| Field of application | agriculture, biology, food, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, elastic, containing water / fat / oil, dry, fibrous |
| Size reduction principle | cutting |
| Material feed size* | 40 mm |
| Final fineness* | < 300 µm |
| Batch size / feed quantity* | with standard lid 700 ml with reduction lid 150-300 ml with gravity lid 300 – 600 ml |
| Grinding chamber volume | with standard lid 1000 ml with reduction lid 250 ml/500 ml with gravity lid 400 – 800 ml |
| Speed setting | digital, 2,000 – 10,000 min-1 (14,000 min-1 BOOST) |
| Material of grinding tools | blade: stainless steel / titanium fixation of blade: PVDF / stainless steel container: autoclavable plastic / plastic PP / stainless steel |
| Setting of grinding time | digital, 1 s – 3 min |
| Interval operation | yes |
| Storable SOPs | 8 programms / 4 sequences |
| Drive | series-characteristic motor |
| Drive power | ~ 1000 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | grinding chamber and keypad IP 42 |
| Power consumption | ~ 1000 W |
| W x H x D closed | 350 x 275 x 392 mm (opened: 350 x 410 x 553) |
| Net weight | ~ 10 kg |
| Standards | CE |
*depending on feed material and instrument configuration/settings
