PRODUCT ADVANTAGES
- exact dividing, also of larger quantities
- modular design
- adjustable dividing ratio

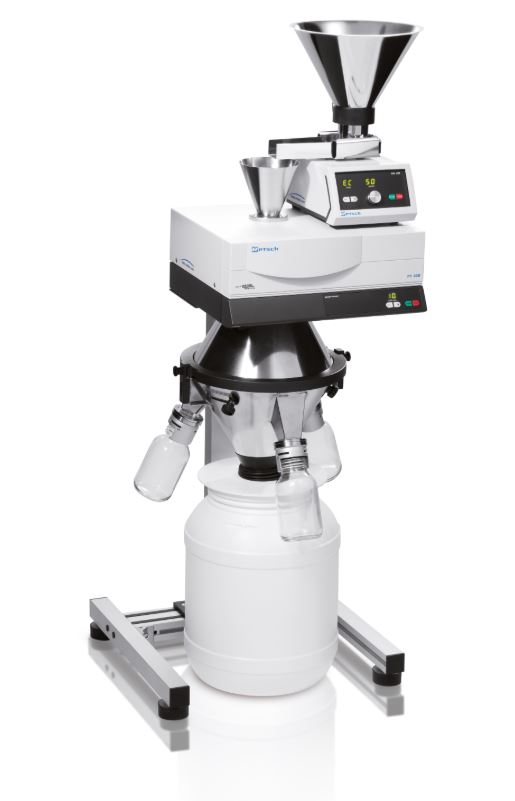

- extraction of 1 – 3 samples
- quick-release sample outlets and easy fastening of bottom cone
- batch and continous operation possible
- speed-controlled rotating tube
- direct digital connection for Vibratory Feeder DR 100
- dividing process according to DIN 51701
ASSEMBLY & INSTALLATION VIDEO

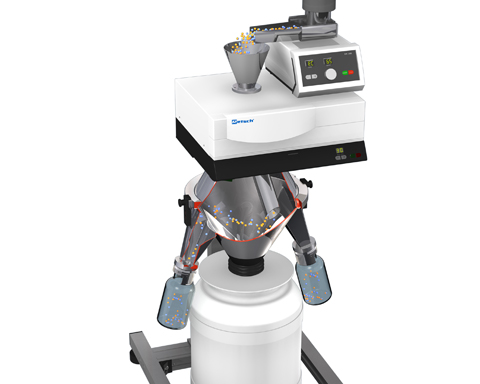

FUNCTIONAL PRINCIPAL
The material to be divided passes through the feed hopper via the chute of the vibratory feeder into the rotating tube divider. The total material stream is distributed evenly at a constant speed (50 min-1) over the pitch circumference of the lower cone by the tube rotating within the upper cone. The interchangeable lower cones have one, two or three continuously adjustable sample slots. In the course of each rotation a separated quantity corresponding to the width of the slot is deposited in the sample collecting vessel. The rest passes into the reject container.
TECHNICAL DATA
| Applications | sample division, sample reduction |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | bulk materials |
| Material feed size* | <= 10 mm |
| Batch size / feed quantity* | <= 5000 ml |
| Rotary speed | 110 min-1 |
| Number of divisions | 6 / 8 / 10 |
| Time setting | digital, 1, 3, 5, 10 – 60 min / continuous operation |
| Container volume | 30 ml / 100 ml / 250 ml / 500 ml |
| Electrical supply data | 100-240 V, 50/60Hz |
| Power connection | 1-phase |
| W x H x D | 580 x 910 x 420 mm (incl. DR 100) |
| Net weight | ~ 33.5 kg (incl. DR 100) |
| Standards | CE |
*depending on feed material and instrument configuration/settings
