Cutting Mill Systems
Fast, Controlled Size Reduction for Tough, Fibrous and Elastic Materials
Cutting mills provide fast, controlled size reduction of soft, medium-hard, tough, elastic and fibrous materials, including plastics, polymers, rubber, textiles, wood, plant material, food products, pharmaceuticals and heterogeneous waste.
Material is reduced through efficient cutting and shearing between rotating blades and stationary cutting bars, while interchangeable bottom sieves produce a defined and reproducible particle size.

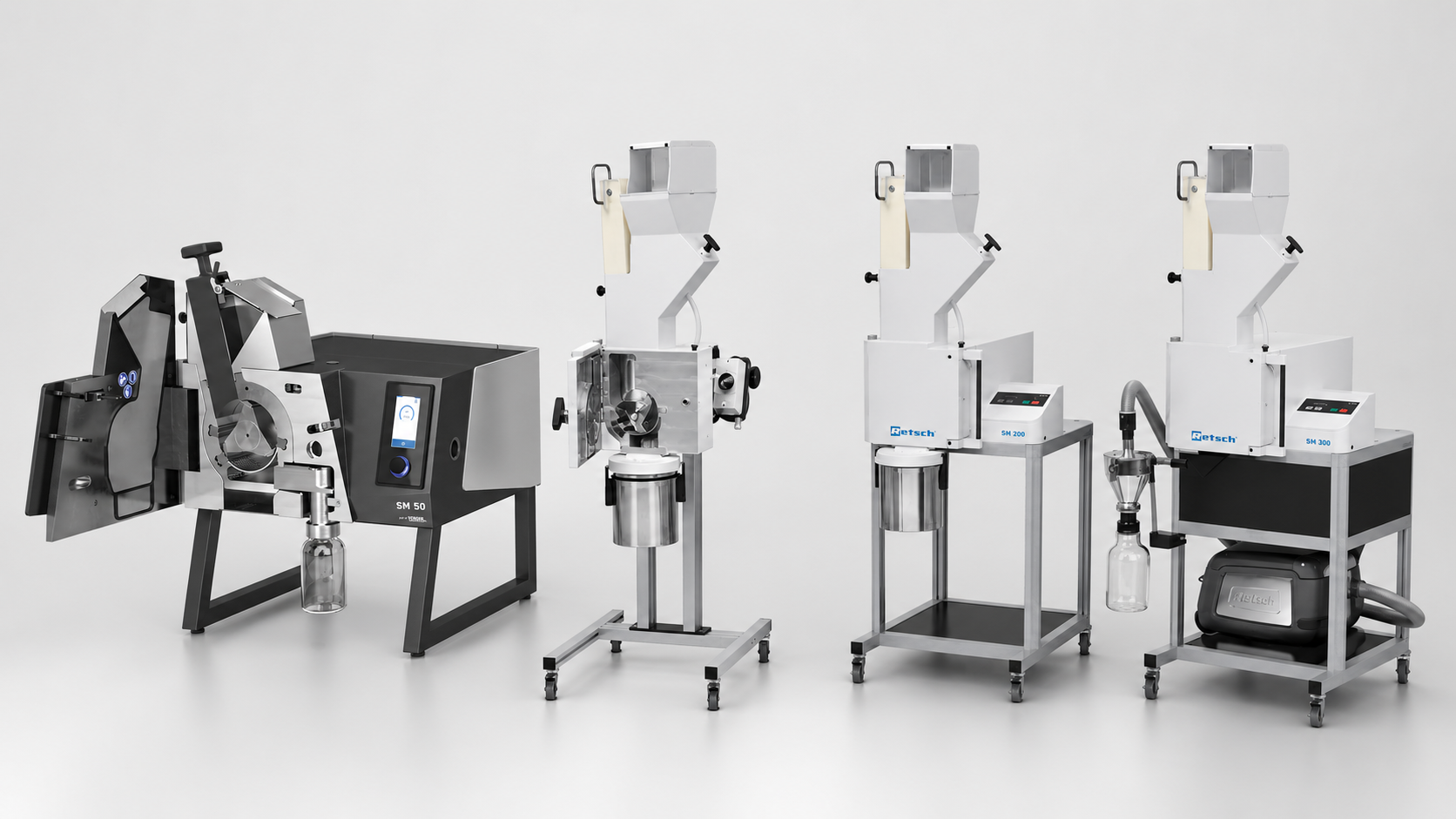

With models ranging from compact laboratory systems to high-torque mills for demanding applications, these versatile machines can be configured with different rotors, hoppers, sieves, collection vessels and cyclone systems.
Their low heat generation, strong sample recovery, straightforward operation and easy-to-clean designs make them ideal for routine sample preparation, recycling, quality control and research applications.
Rugged Construction
Consistant Results
Easy to Clean

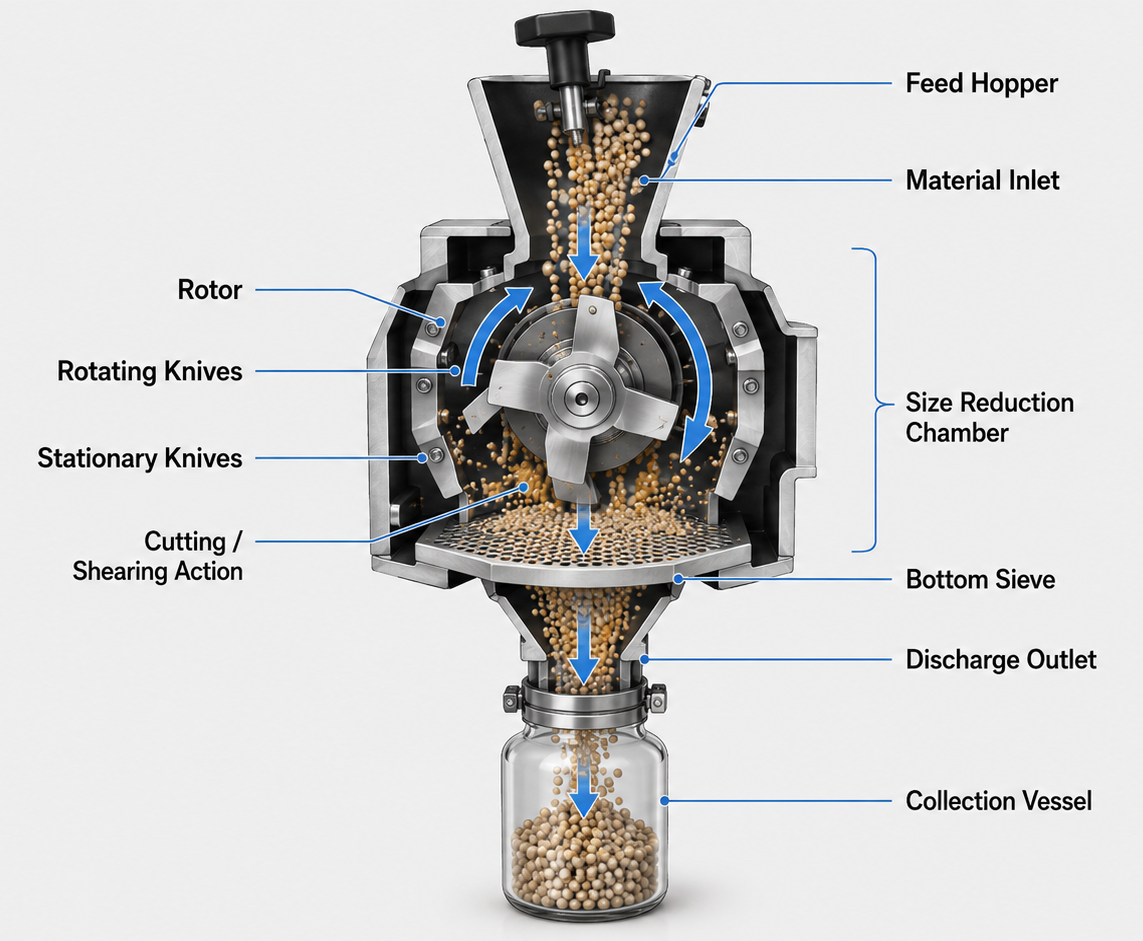

How Cutting Mills Work
Material enters the cutting mill through the feed hopper and moves into the size-reduction chamber, where a high-speed rotor drives the rotating knives past fixed stationary knives. This close knife interaction creates a controlled cutting and shearing action that efficiently reduces tough, fibrous, elastic and heterogeneous materials with relatively low heat generation. The material remains inside the chamber until it is small enough to pass through the selected bottom sieve, which controls the final particle size.
Once reduced, the processed material flows through the discharge outlet and into a collection vessel or optional cyclone collection system for clean, efficient sample recovery.
Dust Free Cyclone Options
A cyclone collection system helps create a dust-free crushing process by pulling airborne fines and loose particles away from the jaw crusher during operation. As material is crushed, fine dust can escape from the discharge area and handling points; the cyclone uses airflow to capture those particles and separate them from the air stream before they spread into the lab or production area. This improves operator cleanliness, reduces housekeeping, helps protect nearby equipment, and can recover valuable material that would otherwise be lost as dust.
For applications involving dry, brittle, abrasive, or hazardous powders, cyclone collection also supports a cleaner, more controlled process from crushing through final collection.
Application Examples
Plastics and Polymers
Rubber and Elastomers
Wood and Forestry Products
Agricultural samples
Food Products
Pharmaceutical Materials
Textiles and Fibers
Biomass and Biofuels
Electronic Waste
Packaging Materials
Why Choose Rotor Mills
Efficient Cutting and Shearing
Controlled Final Particle Size
Fast, Efficient Grinding
Low Heat Generation
Versatile Material Processing
Flexible Configurations
Common Rotor Milling Goals
Reduce Material to a Manageable Size
Achieve a Consistent Final Size
Protect Heat-Sensitive Materials
Prepare Representative Samples
Improve Mixing and Blending
Have a Material Challenge?
Tell us about your material and goals, and we’ll recommend the right solution.

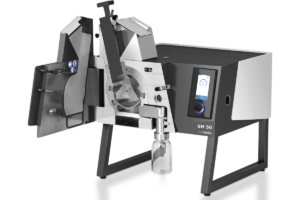

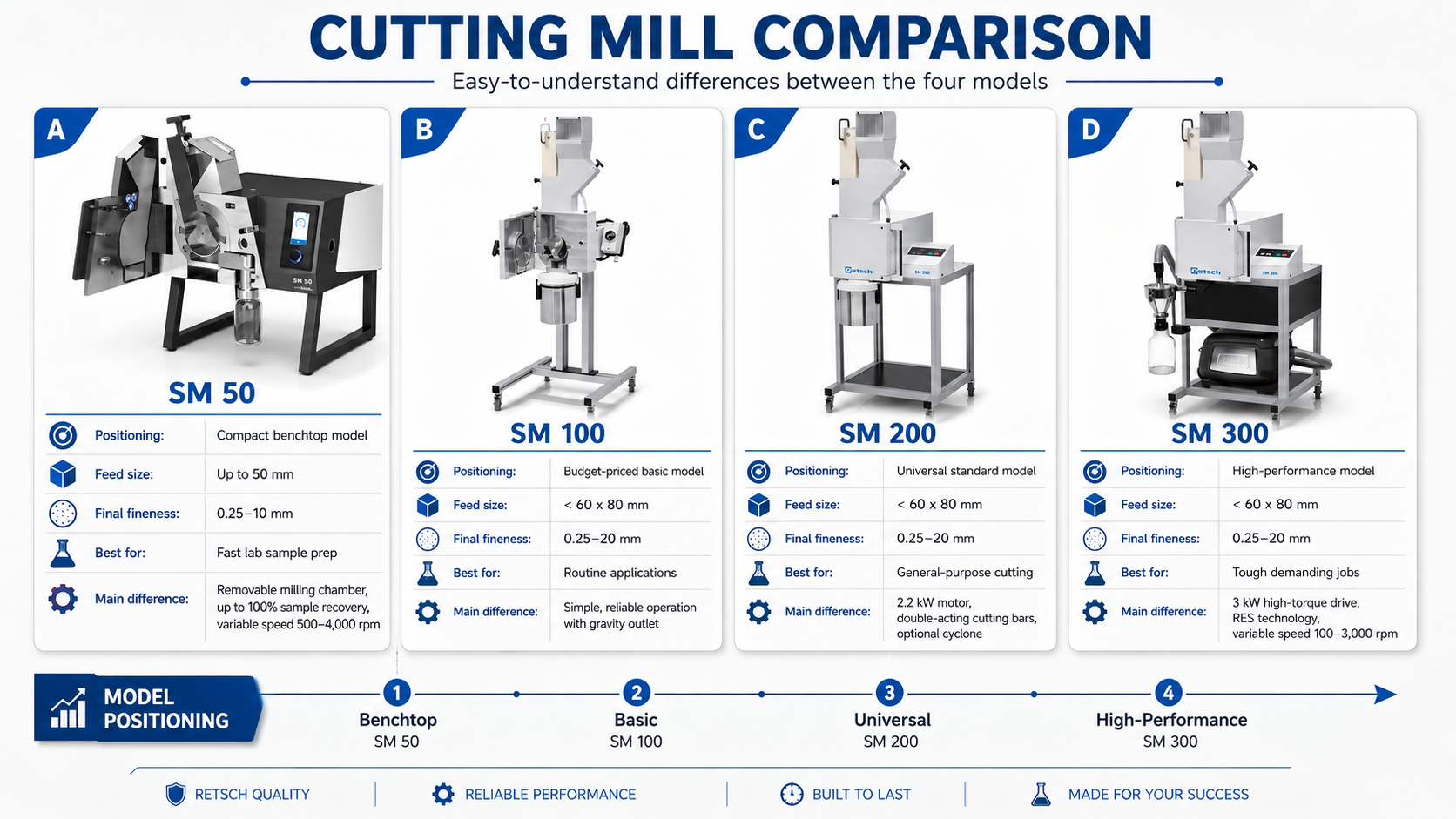

SM 50
- Feed material: soft, medium-hard, tough, elastic, fibrous
- Material feed size*: 50 mm
- Final fineness*: 0.25 – 10 mm
- Speed at 50 Hz (60 Hz): 500 – 4,000 min-1

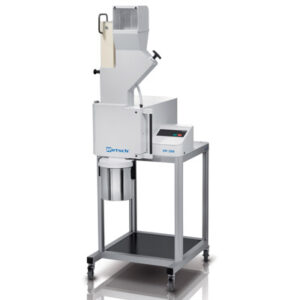

SM 200
- Feed material: soft, medium-hard, tough, elastic, fibrous
- Material feed size*: < 60 x 80 mm
- Final fineness*: 0.25 – 20 mm
- Speed at 50 Hz (60 Hz): 1,500 min-1

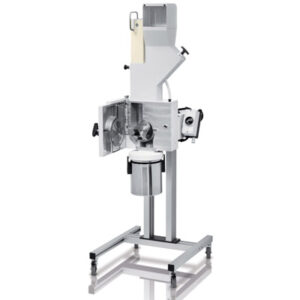

SM 100
- Feed material: soft, medium-hard, elastic, fibrous
- Material feed size*: < 60 x 80 mm
- Final fineness*: 0.25 – 20 mm
- Speed at 50 Hz (60 Hz): 1,500 min-1

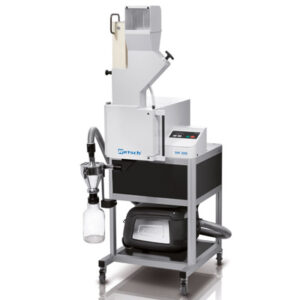

SM 300
- Feed material: soft, medium-hard, tough, elastic, fibrous
- Material feed size*: < 60 x 80 mm
- Final fineness*: 0.25 – 20 mm
- Speed at 50 Hz (60 Hz): 100 – 3000 min-1
Additional Benefits
Higher Product Recovery
Reduced Cross-Contamination
Improved Process Control
Handles Irregular Feed Shapes
Lower Heat Exposure
Supports Continuous Processing
Why Start With Testing or Renting
Free Feasibility Testing
Test your material in our lab on the right jaw crushing system. Receive data and recommendations at no cost.
Validate Before You Buy
Reduce risk with real data and expert recommendations.
Bridge Capacity Needs
Use tolling or rental systems to meet demand and scale with confidence.
