Knife Mill Systems
Fast, Reproducible Homogenization for Soft, Fibrous, Moist, and Difficult Samples
Knife mills provide fast, efficient size reduction and complete homogenization of soft, medium-hard, elastic, fibrous, and moisture-rich materials. Their high-speed blades process dry products as well as samples containing water, oil, or fat, making them especially effective for foods, animal feeds, plant materials, pharmaceuticals, and other laboratory samples.
Adjustable operating parameters support both preliminary size reduction and fine grinding, producing homogeneous, representative samples with minimal temperature increase.
Available in configurations for small laboratory batches through larger sample volumes, knife mills can be equipped with specialized blades, containers, lids, and cryogenic accessories to accommodate tough, sticky, heat-sensitive, or difficult-to-process materials while delivering reliable and reproducible results.
Rugged Construction
Consistant Results
Easy to Clean

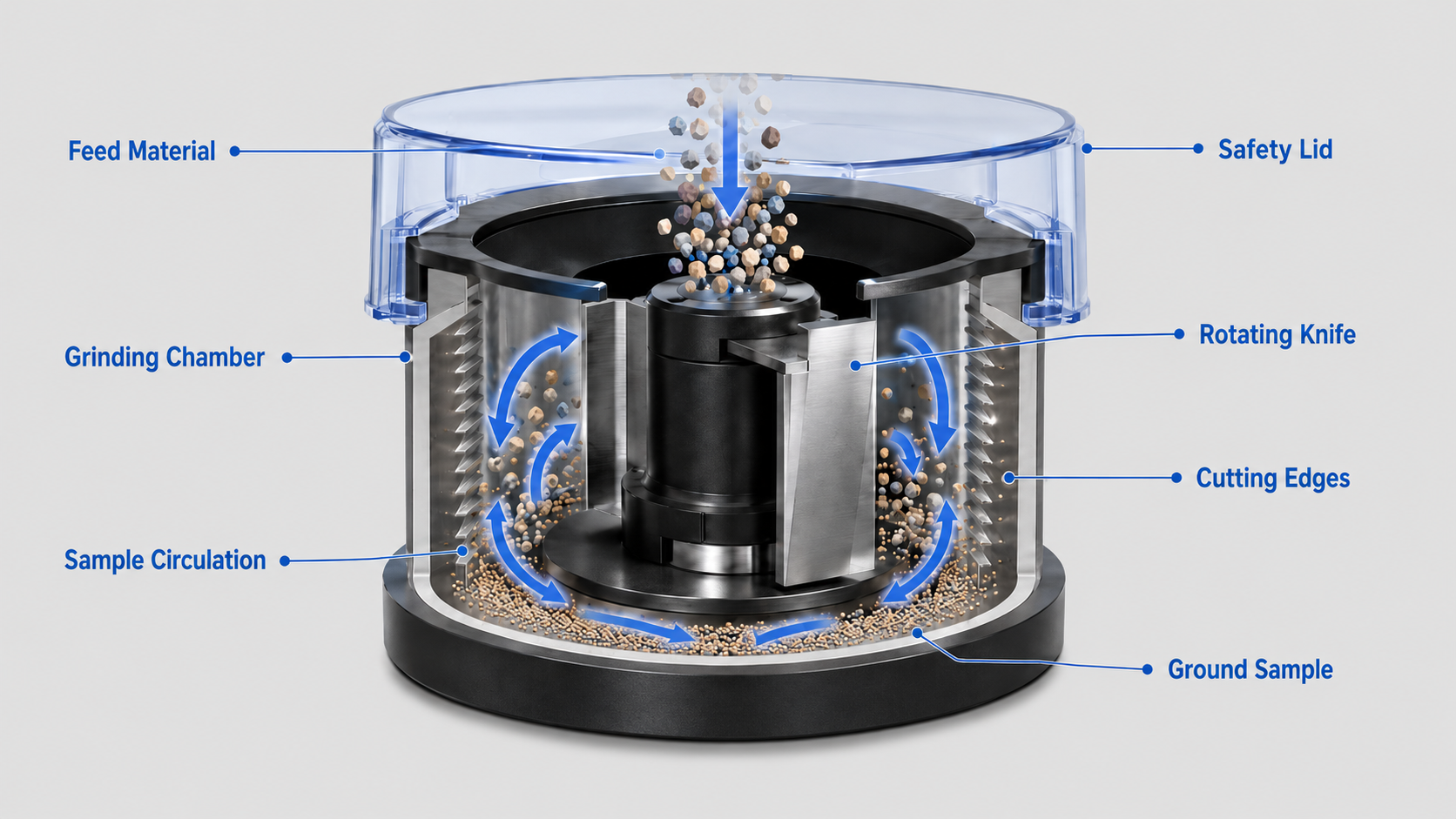

How Knife Mills Work
Knife mills reduce and homogenize samples inside a closed grinding chamber using rapidly rotating blades. As the knife turns, the material is repeatedly drawn into the cutting zone, where it is sliced, sheared, and impacted against the blade edges and chamber walls. The continuous circulation exposes the entire sample to repeated cutting, producing a uniform, representative result while the processed material remains contained inside the chamber.
By adjusting blade speed, grinding time, blade geometry, and container configuration, knife mills can efficiently process soft, fibrous, elastic, moist, oily, and temperature-sensitive materials.
Application Examples
Food Products
Fruits and Vegetables
Grains and Cereals
Animal Feed and Forage
Plant and Botanical Materials
Pharmaceutical Products
Plastics and Polymers
Biomass and Environmental Samples
Tough, Moist, or Oily Samples
Electronic and Battery Materials
Why Choose Knife Mills
Fast, Efficient Homogenization
Handles Difficult Samples
Reproducible Results
Closed, Contained Processing
Versatile Material Processing
Easy Cleaning and Changeover
Common Knife Milling Goals
Reach a Defined Particle Size
Improve Extraction Efficiency
Preserve Sensitive Sample Properties
Produce Representative Test Portions
Standardize Samples for Quality Control
Have a Material Challenge?
Tell us about your material and goals, and we’ll recommend the right solution.

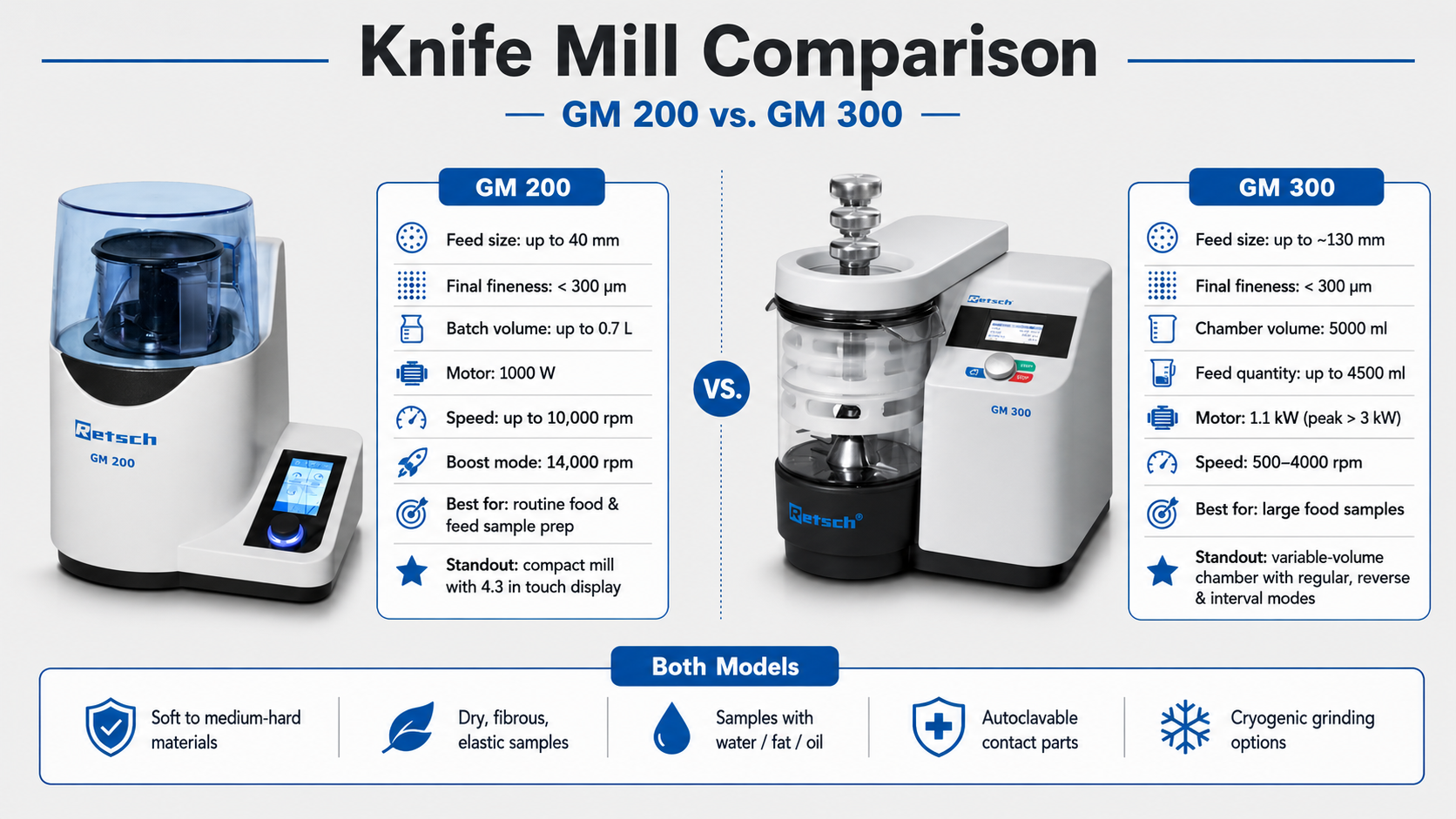

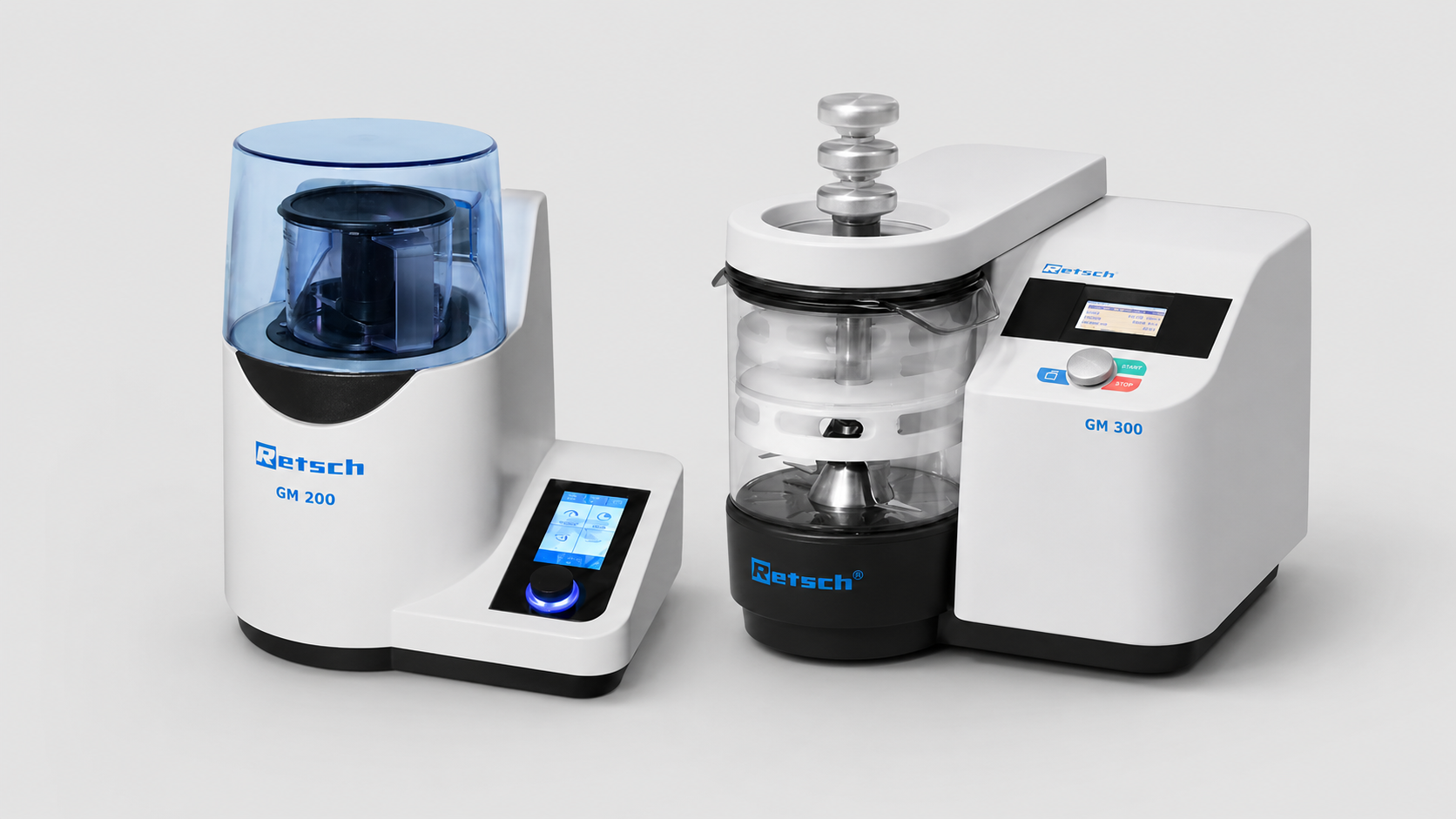

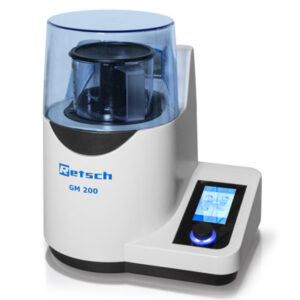

GRINDOMIX
GM 200
- Feed material: soft, medium-hard, elastic, containing water / fat / oil, dry, fibrous
- Material feed size*: 40 mm
- Final fineness*: < 300 µm

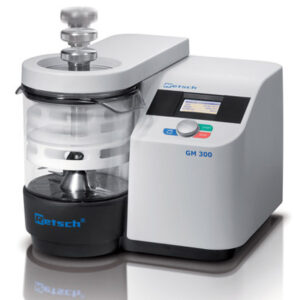

Knife Mill GRINDOMIX
GM 300
- Feed material: soft, medium-hard, elastic, containing water / fat / oil, dry, fibrous
- Material feed size*: ~ 130 mm
- Final fineness*: < 300 µm
Additional Benefits
Flexible Batch Capacity
Reduced Manual Preparation
Programmable Operating Methods
Enhanced Operator Safety
Cryogenic Processing Capability
Compact Laboratory Footprint
Why Start With Testing or Renting
Free Feasibility Testing
Test your material in our lab on the right jaw crushing system. Receive data and recommendations at no cost.
Validate Before You Buy
Reduce risk with real data and expert recommendations.
Bridge Capacity Needs
Use tolling or rental systems to meet demand and scale with confidence.
