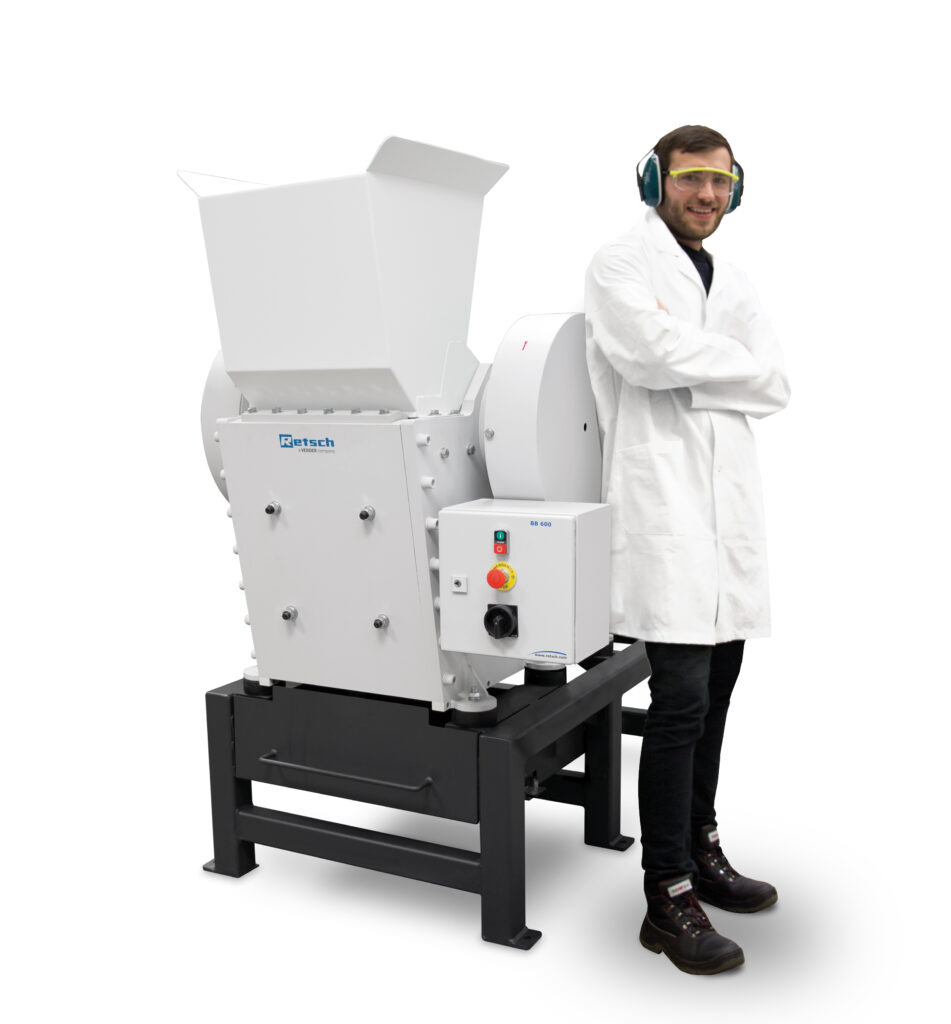

BB 600 Jaw Crusher

BB 600 Jaw Crusher

The Jaw Crusher BB 600 is specifically designed for accepting large feed sizes up to 350 x 170 mm. The gap width can be set stepless from 6 – 60 mm. Depending on the sample material, particle sizes down to 6 mm can be obtained in one working run, resulting in an excellent crushing ratio of 25. A throughput of up to 3500 kg/h is possible with the BB 600.

The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.

Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.

ROBUST & VERSATILE

  • Excellent crushing ratio
  • Continuous gap width setting
  • High throughput up to 3500 kg/h
  • Removable hopper with splash-back protection
  • Suitable for continuous and batchwise crushing

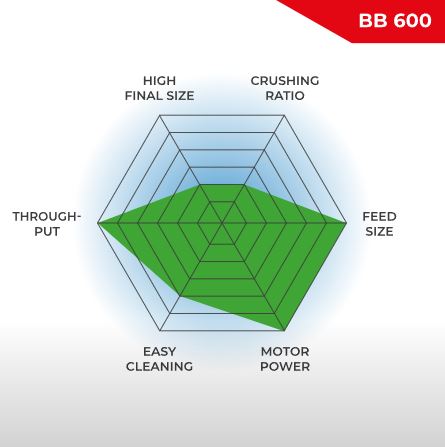

Largest feed size combined with highest throughput

SUPERIORITY IN DETAIL

The BB 600 achieves a throughput of up to 3,500 kg per hour. For batchwise processing, the jaw crusher is equipped with a 30 l collecting receptacle.

Further features like overload protection and a feed hopper with splash-back protection make working with the BB 600 convenient and safe.

The breaking jaws for the BB 600 are sized 400 x 600 mm and are available in

  • Manganese steel
  • Steel for heavy-metal-free grinding
  • NiHard4 steel.

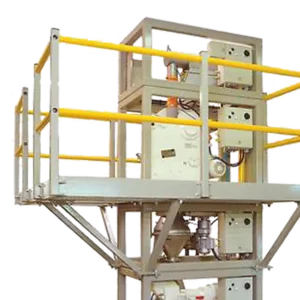

Process-line version

Due to the low installation height of 1 meter the BB 600 is ideally suited for continuous operation in automatic installations and sampling stations.

Thanks to the compact design of the BB 600 it may replace a jaw crusher in existing installations.

TYPICAL MATERIAL TYPES

RETSCH’s powerful jaw crushers are ideally suited for preliminary crushing of construction materials, ores, granite, oxide ceramics, quartz, slag, silicon, coal, tungsten alloys, cement clinker, etc.

FUNCTIONAL PRINCIPAL

The Jaw Crusher BB 600 is a robust and powerful jaw crusher.

The feed material passes through the no-rebound hopper and enters the crushing chamber.Size reduction takes place in the wedge-shaped area between the fixed breaking jaw and the moveable breaking jaw driven by an eccentric drive shaft. The elliptical motion crushes the sample which then moves downwards under gravity.

On reaching the discharge gap width, it falls into a removable collector or, for continuous applications, on a conveyor belt, vibratory feeder or sampler.

TECHNICAL DATA

Applications coarse and pre-crushing
Field of application chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics
Feed material medium-hard, hard, brittle, tough
Size reduction principle pressure
Material feed size* < 350 x 170 mm
Final fineness* < 6 mm
Throughput* 3500 kg/h
Material of grinding tools manganese steel, steel for heavy-metal free grinding, NiHard4
Jaw width 400 x 240 mm
Gap width setting 6 – 60 mm with spacer plates
Dust extraction unit no
Central lubrication no
Process line version Optional
Collector capacity 30 l
Drive 3-phase motor
Drive power 15 kW
Electrical supply data different voltages
Power connection 3-phase
Protection code IP 55
W x H x D closed 925 x 1600 x 1370 mm
Net weight ~ 1350 kg
Standards CE

*depending on feed material and instrument configuration/settings
