PRODUCT ADVANTAGES
Throughput: 300ml (310g) x 2 cup

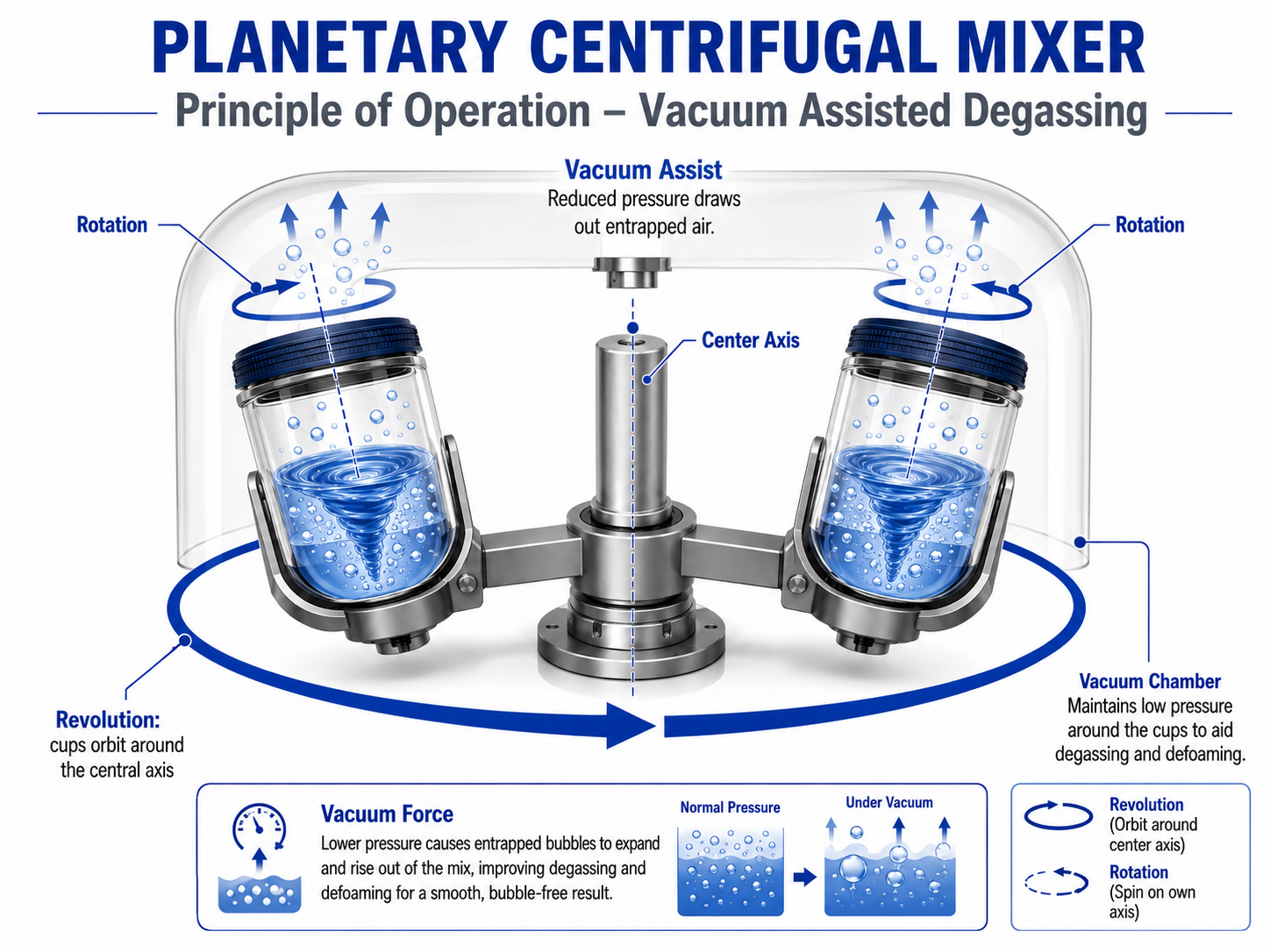

■ Vacuum assisted degassing
■ Individual control of rotation and revolution
■ Step operation
■ Shifted cup option
APPLICATION EXAMPLES
OPTIONAL NON-CONTACT TEMPERATURE SENSOR
The optional Kakuhunter Temperature Monitoring System allows users to measure and monitor material temperature in real time during the mixing process. This accessory helps improve process control, supports repeatable results, and provides added protection for temperature-sensitive materials.
- Measures and monitors material temperature while mixing
- Displays real-time temperature data from the integrated temperature sensor
- Provides alarm notifications when the measured temperature exceeds the preset upper or lower limit
- Allows measured temperature data to be exported in CSV format for recordkeeping and analysis
- Compatible with 300 mL, 400 mL, and 1100 mL containers
Recommended for When:
· Materials are damaged by temperature rises.
· Materials harden with temperature rises.
· The composition of materials changes or their components volatilize, etc.
What’s Included
TECHNICAL DATA
| Cup size | 300ml x 2cups Various syringes of 55cc or less |
|
| Max throughput | 310g x 2cups | |
| Other containers | A variety of containers and syringes can be used by use of an adapter | |
| Speed of revolution | Settable at 9 steps | |
| Speed of rotation | Settable at 10 steps (However, there are some restrictions depending on the speed of revolution.) |
|
| Setup time | Maximum 25 minutes (5 step total) | |
| Step mode | 5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings) |
|
| Conditions setting memory | User-settable channels | 90 CH |
| Fixed data channels | 10 CH | |
| Power supply voltage | Single-phase 100-115V Single-phase 200-230V 50/60Hz |
|
| Power consumption | 1.5kW | |
| External dimensions | W445 x D555 x H495 (mm) (excluding external vacuum pump) | |
| Weight of the main unit | Approx. 80 kg (excluding external vacuum pump) | |
*Vacuum Pump Box is not included as an optional equipment.
* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
