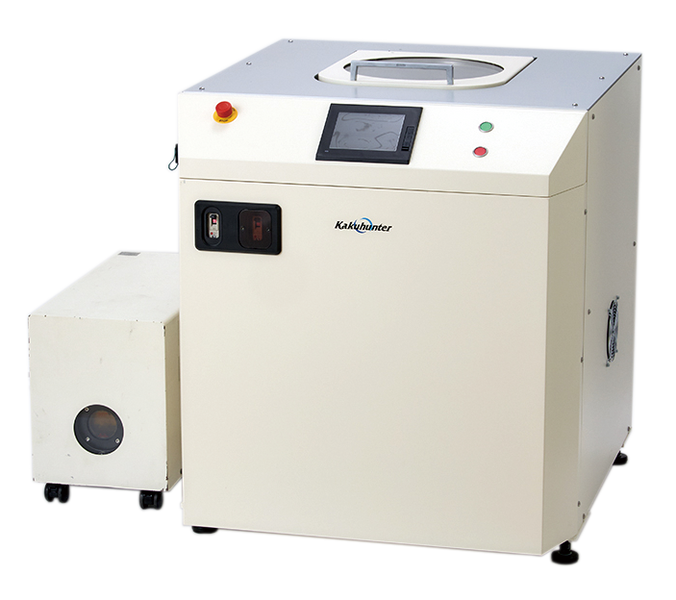

SK-4000TV – Twin 4.0 Liter Cups With Vacuum

The SK-4000TV with vacuum assist degassing and defoaming production model is engineered to deliver high-quality material processing by combining high-speed revolution with a wide-radius gyration motion. This advanced mixing action improves the blending efficiency of powders and liquids, making it ideal for demanding production applications.

By precisely controlling the timing at which the rotation speed increases, the system enhances the mixing rate while helping to suppress lump formation, resulting in a more uniform and consistent final product. The combination of powerful motion control and optimized mixing performance makes this model well suited for producing high-quality materials with improved process reliability.

PRODUCT ADVANTAGES

Throughput
•4000 ml (5.0 kg) x 2 cups

Function
• Individual rotation and revolution control.
• Step operation to help with stubborn materials.
• Vacuum assist for degassing and defoaming.

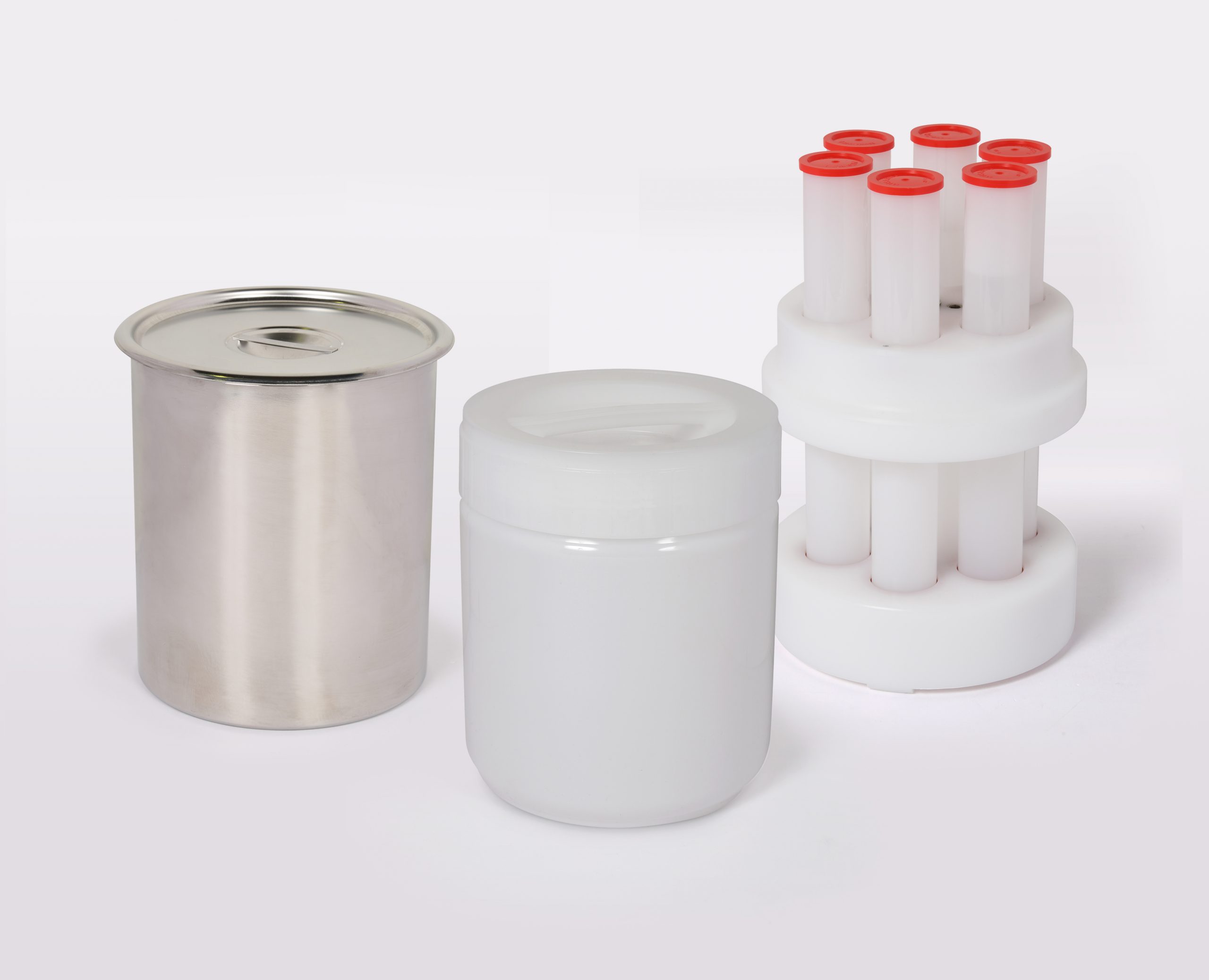

Containers and Adapters

The Kakuhunter mixer can accommodate multiple container sizes and shapes, giving users flexibility when processing different material volumes, viscosities, and application requirements. By using the proper adapter, materials can be mixed and degassed in small jars, syringes, cups, bottles, and specialty containers without needing to transfer the material between vessels. This helps reduce material loss, minimize contamination risk, and improve workflow efficiency.

The ability to use different container formats makes the system suitable for a wide range of applications, from small-scale R&D samples to larger laboratory batches, while maintaining consistent mixing, dispersion, and bubble removal performance.

APPLICATION EXAMPLES

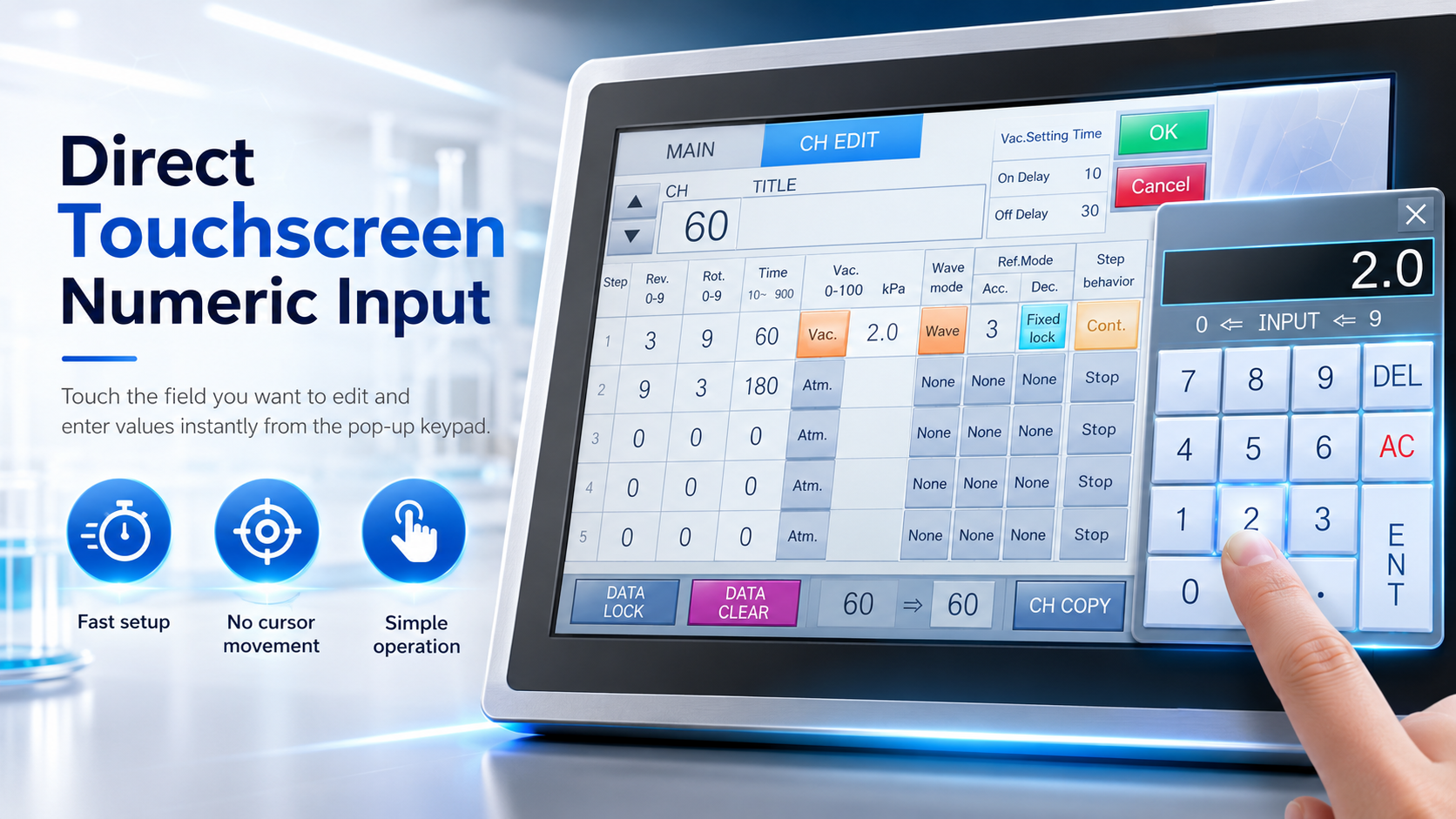

EASY TO USE TOUCH PANEL

The touchscreen interface is designed for simple, intuitive operation. Users can touch the field they want to edit and enter values directly, making setup faster and easier. Speed settings, operating time, and other numerical parameters can be entered using a pop-up numeric keypad, eliminating the need to move a cursor with buttons or scroll through values manually.

This streamlined input method improves usability, reduces setup time, and helps operators enter process conditions more accurately.

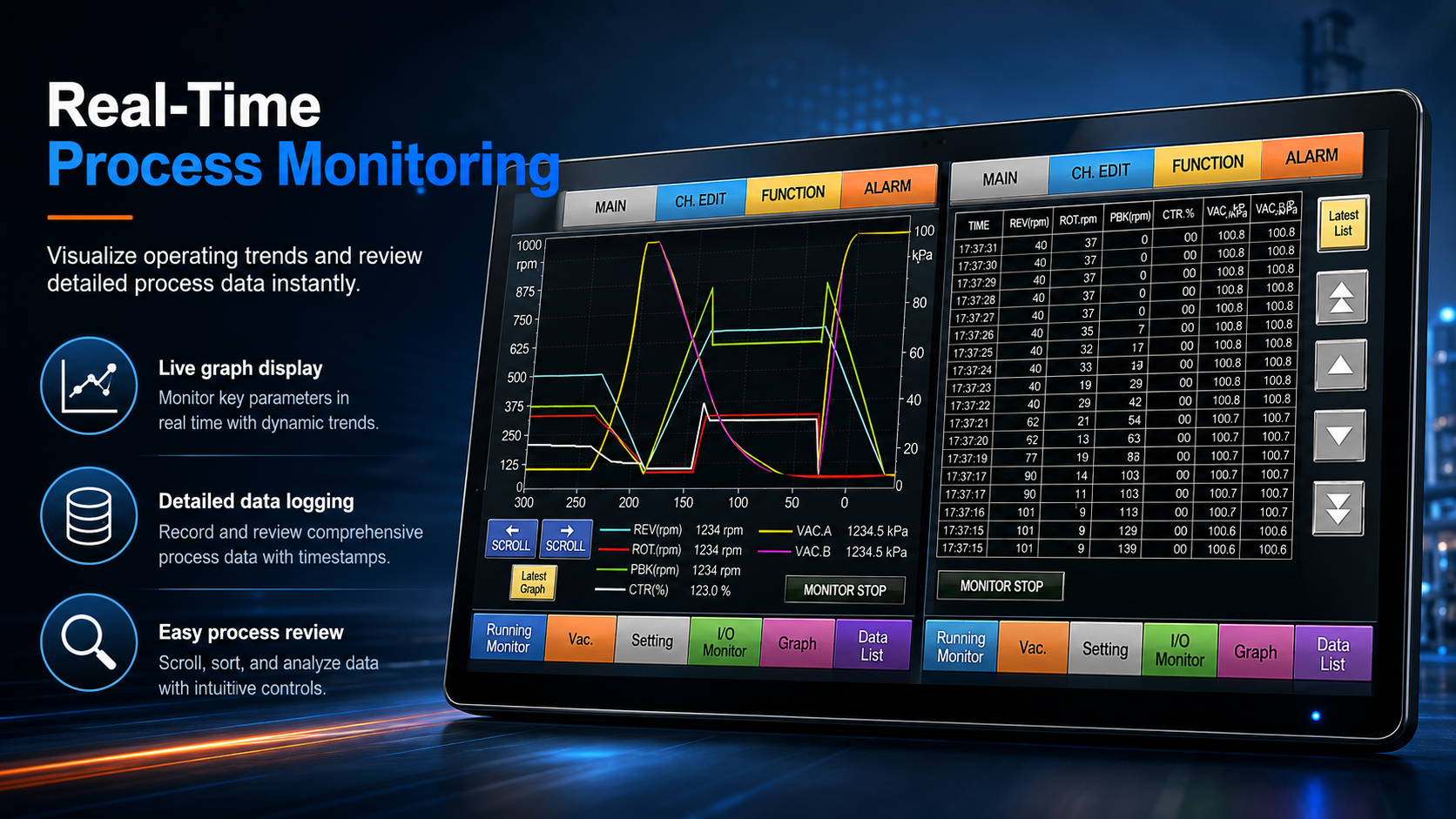

MONITOR PROCESSING DATA

The system makes operating data easy to monitor by displaying key process information both graphically and numerically. Users can view revolution speed, rotation speed, vacuum pressure, and other important operating parameters in real time, either as a visual graph or in log form. This allows operators to track process conditions, confirm repeatability, and review performance data after mixing and degassing.

The ability to monitor and record operating conditions supports better quality control, easier troubleshooting, and more consistent processing results.

SAFETY FEATURES

This model is designed to make container handling smoother, safer, and more convenient, especially when working with heavy containers filled with material.

Instead of manually turning the cup tray rotor or struggling to remove containers from difficult positions, the system includes a rotor stopping position setting function that allows the rotor to stop in a user-selected position at the end of operation for easier container access. It also features a cup tray rotor 180-degree turning function, which automatically rotates the rotor halfway with the press of a button, bringing the opposite container into an easy removal position.

These functions help reduce operator effort, improve workflow efficiency, and make loading and unloading containers more ergonomic during routine mixing and degassing operations.

Step 1: Remove one container
Steo 2: Close the lid of the machine and press the button.
Step 3: The rotor makes a half turn and stops at the same position as the previous container.

OPTIONAL NON-CONTACT TEMPERATURE SENSOR

The optional Kakuhunter Temperature Monitoring System allows users to measure and monitor material temperature in real time during the mixing process. This accessory helps improve process control, supports repeatable results, and provides added protection for temperature-sensitive materials.

  • Measures and monitors material temperature while mixing
  • Displays real-time temperature data from the integrated temperature sensor
  • Provides alarm notifications when the measured temperature exceeds the preset upper or lower limit
  • Allows measured temperature data to be exported in CSV format for recordkeeping and analysis
  • Compatible with 300 mL, 400 mL, and 1100 mL containers

Recommended for When:

· Materials are damaged by temperature rises.
· Materials harden with temperature rises.
· The composition of materials changes or their components volatilize, etc.

What’s Included

Container with temperature transmitter cover assembly.
Receiver for customer computer
Sensor Application Software

TECHNICAL DATA

Cup size 4000ml commercially available containers
or standard SUS containers
[customizable]
Max throughput 5kg (container included) x 2 cups
[customizable]
Other containers A variety of containers and syringes can be used by use of an adapter
Speed of revolution 120～600rpm
Settable at 9 steps
Speed of rotation with respect to 0 ~ 1.0 x revolution
Settable at 10 steps
Setup time Maximum 25 minutes  (5 step total)
Step mode 5 steps
Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90 CH
Fixed data channels 10 CH
Power supply voltage Three-phase 200-240V
50/60Hz
Power consumption Max 13kW
External dimensions W1330 x D1010 x H1120 (mm) (excluding external vacuum pump)
Weight of the main unit Approx. 700 kg (excluding external vacuum pump)

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
