Showing 16–30 of 79 results
-
8" (202 mm / 203 mm) Models, Classifying, Sieve Shakers
AS 450 Control Sieve Shaker
With the Vibratory Sieve Shaker AS 450 control RETSCH have designed their first 3-D shaker for 400 mm and 450 mm sieves. It can be used for dry and wet sieving of sample amounts of up to 25 kg. The AS 450 control combines the benefits of electromagnetic sieving – controlled amplitude with highest reproducibility – with the powerful drive based on CET technology (Continuous Energy Transfer).
Even with high loads a constant vibration height of 2.2 mm and, as a result, high separation efficiency are achieved thanks to the continuous controlled energy input. Manual re-sieving is no longer required. When it comes to operating comfort, the AS 450 control meets all the requirements of a modern laboratory. All parameters such as amplitude, time and interval are digitally set, displayed and controlled via a remote operation panel
SKU: n/a -
Jaw Crushers
BB 200 Jaw Crusher
The Jaw Crusher BB 200 is a floor model designed for a throughput of up to 300 kg/h, suitable for many typical crushing tasks. It accepts feed sizes up to 90 mm. The gap width can be set stepless from 0-30 mm.
Depending on the sample material, particle sizes down to 2 mm can be obtained, resulting in a crushing ratio of 45. Its versatile usage includes continuous pre-and fine crushing in one step or process-line versions.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
SKU: n/a -
Jaw Crushers
BB 250 Jaw Crusher
The Jaw Crusher BB 250 is specifically designed for accepting large feed sizes up to 120 x 90 mm. The gap width can be set stepless from 0-30 mm. Depending on the sample material, particle sizes down to 2 mm can be obtained, resulting in a crushing ratio of 45. A throughput of up to 300 kg/h is possible with the BB 250.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
SKU: n/a -
Jaw Crushers
BB 400 Jaw Crusher
The Jaw Crusher BB 400 is specifically designed for accepting large feed sizes up to 220 x 90 mm. The gap width can be set stepless from 0-30 mm. Depending on the sample material, particle sizes down to 2 mm can be obtained, resulting in a crushing ratio of 50. A throughput of up to 400 kg/h is possible with the BB 400.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
SKU: n/a -
Fine Jaw Crushers, Jaw Crushers
BB 50 Jaw Crusher
The BB 50 is the smallest model of the RETSCH jaw crusher series and has been specially designed for sample preparation in the laboratory. The compact machine fits on any laboratory bench and offers safe and convenient handling.
This jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width, and breaking properties of the sample material.
Robust design, simple handling, and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts, the crushers can be operated continuously.
SKU: n/a -
Jaw Crushers
BB 500 Jaw Crusher
The Jaw Crusher BB 500 is specifically designed for accepting large feed sizes up to 110 mm. The gap width can be set stepless from 0-11 mm. Depending on the sample material, particle sizes down to 0.5 mm can be obtained in one working run, resulting in an excellent crushing ratio of 220. A throughput of up to 500 kg/h is possible with the BB 500.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
SKU: n/a -
Jaw Crushers
BB 600 Jaw Crusher
The Jaw Crusher BB 600 is specifically designed for accepting large feed sizes up to 350 x 170 mm. The gap width can be set stepless from 6 – 60 mm. Depending on the sample material, particle sizes down to 6 mm can be obtained in one working run, resulting in an excellent crushing ratio of 25. A throughput of up to 3500 kg/h is possible with the BB 600.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
SKU: n/a -
Carbon Steel Balls, Grinding Media, Steel Media
Carbon Steel Balls
Carbon steel balls are a durable, cost-effective grinding and processing media designed for applications that require high impact strength, toughness, and reliable wear performance. Commonly used in ball mills, attritors, vibratory mills, tumbling mills, and other industrial grinding systems, carbon steel balls are well suited for reducing particle size, dispersing materials, and blending powders in dry or wet processing environments.
Their density and hardness make them effective for aggressive milling of minerals, chemicals, pigments, ceramics, metals, and other industrial materials. In addition to grinding applications, carbon steel balls are also used in vibratory finishing, burnishing, polishing, valves, automotive components, mechanical assemblies, and general industrial applications where strength and durability are required.
Available in multiple sizes and grades, carbon steel balls provide a practical solution for customers looking for dependable performance at an economical price.
SKU: n/a -
Grinding Media, Steel Media
Chrome Steel Balls
Chrome steel balls are precision-manufactured, high-hardness steel spheres designed for demanding grinding, bearing, and mechanical motion applications. Produced from chromium alloy steel, they offer excellent wear resistance, dimensional consistency, surface finish, and load-carrying performance. Their hardness and impact strength make them well suited for use as grinding media in chemical processing, industrial grinding, food grinding, and vibratory finishing, where consistent energy transfer and long service life are required.
In addition to grinding applications, chrome steel balls are widely used in high-precision and industrial bearings, ball screws, swivels, quick connects, linear motion systems, oil and gas drilling components, and wind power equipment. Their combination of roundness, durability, compressive strength, and smooth surface quality allows them to perform reliably in systems that require low-friction movement, high contact stress resistance, and repeatable mechanical performance.
SKU: n/a -
Ball Mills, Cryogenic Grinding, Mixer Mills
CryoMill
Cryogenic grinding is a process where thermally sensitive and elastic substances are successfully processed by cooling with liquid nitrogen. The CryoMill is a laboratory ball mill specifically designed for this application. It features an integrated cooling system which continually cools the grinding jar with liquid nitrogen before and during the grinding process. Thus, the sample is embrittled and volatile components are preserved.
The liquid nitrogen is continually supplied from an autofill system in the exact amount required to keep the temperature at –196 °C. The user never comes into direct contact with LN2 which ensures a high degree of operational safety. The CryoMill’s versatility (cryogenic, but also wet and dry grinding at room temperature) makes it the ideal grinder for sample quantities up to 20 ml. Powerful impact ball milling results in highest grinding efficiency.
SKU: n/a -
Disc Mills
DM 200 Disc Mill
Thanks to its robust design, the Disc Mill DM 200 can be used under rough conditions in laboratories and pilot plants, as well as online for the quality control of raw materials. The powerful DM 200 requires only a few minutes to achieve the desired grind size.
Product Advantages
- excellent crushing performance
- reproducible results due to accurate gap setting
- hinged grinding chamber for easy cleaning
- grinding discs with long working life
- wide range of materials for contamination free grinding
- connector for dust extraction
- can be operated together with Jaw Crusher BB 200
SKU: n/a -
Feeders

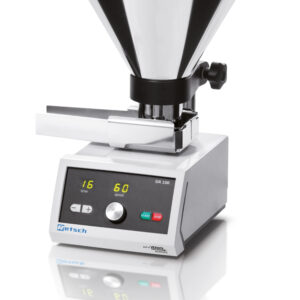

DR 100 Feeder
The vibratory feeder DR 100 is used for the uniform, continuous feeding and conveyance of pourable bulk materials and fine powders. The DR 100 feeds RETSCH mills, sample dividers, and particle measuring devices, and it is also suitable for other feeding tasks. Its performance, adaptability and compact design makes this device suitable for a great variety of applications. The DR 100 can also be driven and controlled externally via the built-in interface. RETSCH vibratory feeders guarantee reproducibly exact results and maximize the efficiency of downstream laboratory and testing devices.
SKU: n/a -
Ball Mills, High Energy Ball Mill
Emax High Energy Ball Mill
The Emax is an entirely new type of ball mill for high energy milling. The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time.
- faster and finer grinding than any other ball mill
- speed of 2000 min-1 allow for ultra-fast pulverization of the sample
- water cooling permits continuous operation without cool down breaks
- temperature-controlled grinding
- narrow particle size distribution thanks to special jar design which improves mixing of the sample
SKU: n/a -
Cell Disruption
French Press
The French Press G-M® by Glen Mills is a high-pressure laboratory cell disruption system designed for controlled mechanical lysis of biological samples.
Using hydraulic pressure, the French Press forces a cell suspension through a narrow valve, creating shear forces and rapid decompression that rupture cell walls and membranes without the need for beads, harsh chemicals, or excessive heat. Ideal for bacteria, microorganisms, chloroplasts, animal tissue homogenates, and other biological particles, the system is well suited for protein extraction, enzyme recovery, membrane studies, and small-volume research applications.
With pressure capability up to 40,000 psi when used with the standard pressure cell, stainless steel construction, operator-focused safety features, and minimal sample loss, the French Press G-M® provides researchers with a reliable lab-scale solution for high-pressure cell disruption and homogenization.
SKU: n/a
